Citroen Relay Fiat Ducato Brake Light Reversing Camera + 6.86" Dual Split Screen

GBP 155.99
Condition: New
Category: Electronics
Fast Shipping
Estimated delivery in 3-5 days
Easy Returns
30-day returns, buyer pays return shipping

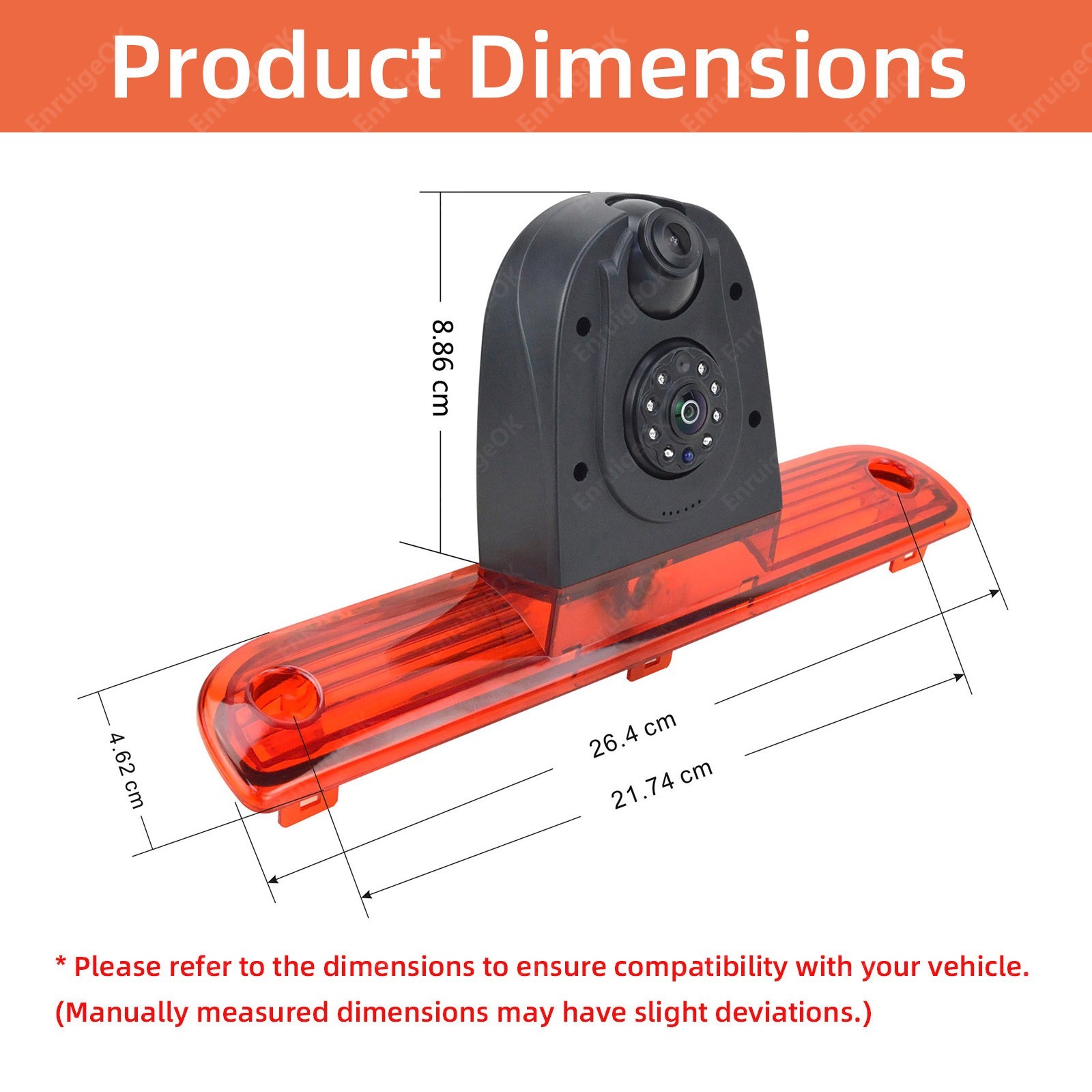

PLEASE NOTE: Please check that the image and dimensions of the camera matches the existing dimensions of the brake light housing on the vehicle.

EnruigeOK 6.86" Dual Split Screen Mirror Monitor with #1 OEM Bracket & Dual Lens Rear Brake Light Reversing Camera For Peugeot Boxer, Fiat Ducato, Citroen Relay Van

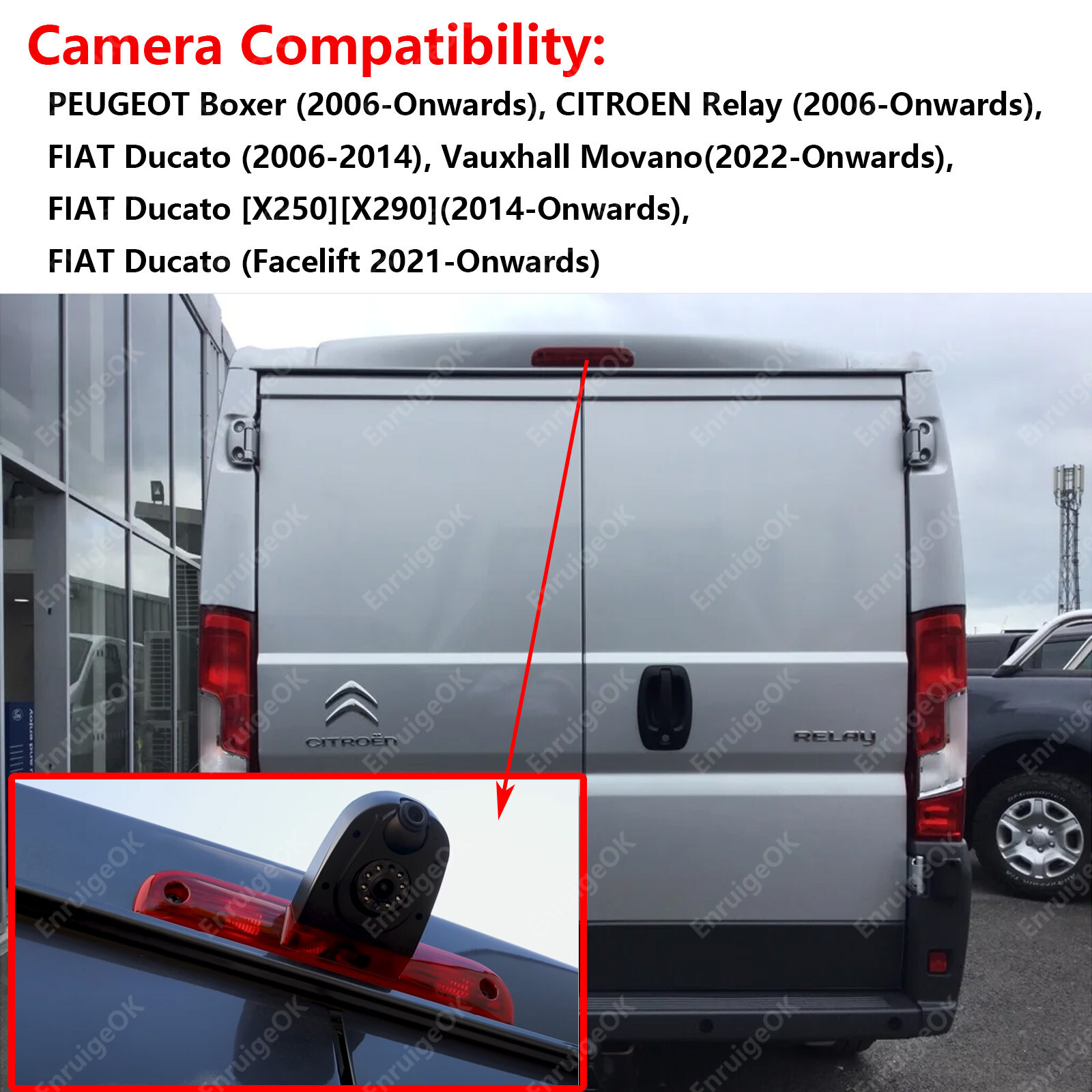

Camera Compatibility:
Peugeot-Boxer 2(2006-2011)
Peugeot-Boxer 3(2012-2014)
Peugeot-Boxer 3 facelift (2014 >)
Citroen-Jumper/Relay 2 (2006-2011)
Citroen-Jumper/Relay 3(2012 -2014)
Citroen-Jumper/Relay facelift (2014 >)
Fiat-Ducato 3rd Gen(2006-2014)
Fiat-Ducato 3rd Gen Facelift (X290)(2014-2021)
Fiat-Ducato 3rd Generation Series lll (X290) (2021 >)
Vauxhall-Movano(2022 >)

This vehicle list is a guide only, please ensure the product dimensions fit your vehicle's installation space and that your vehicle's head unit or monitor supports the product's connection and functionality. If unsure, feel free to contact us or send a picture for verification.

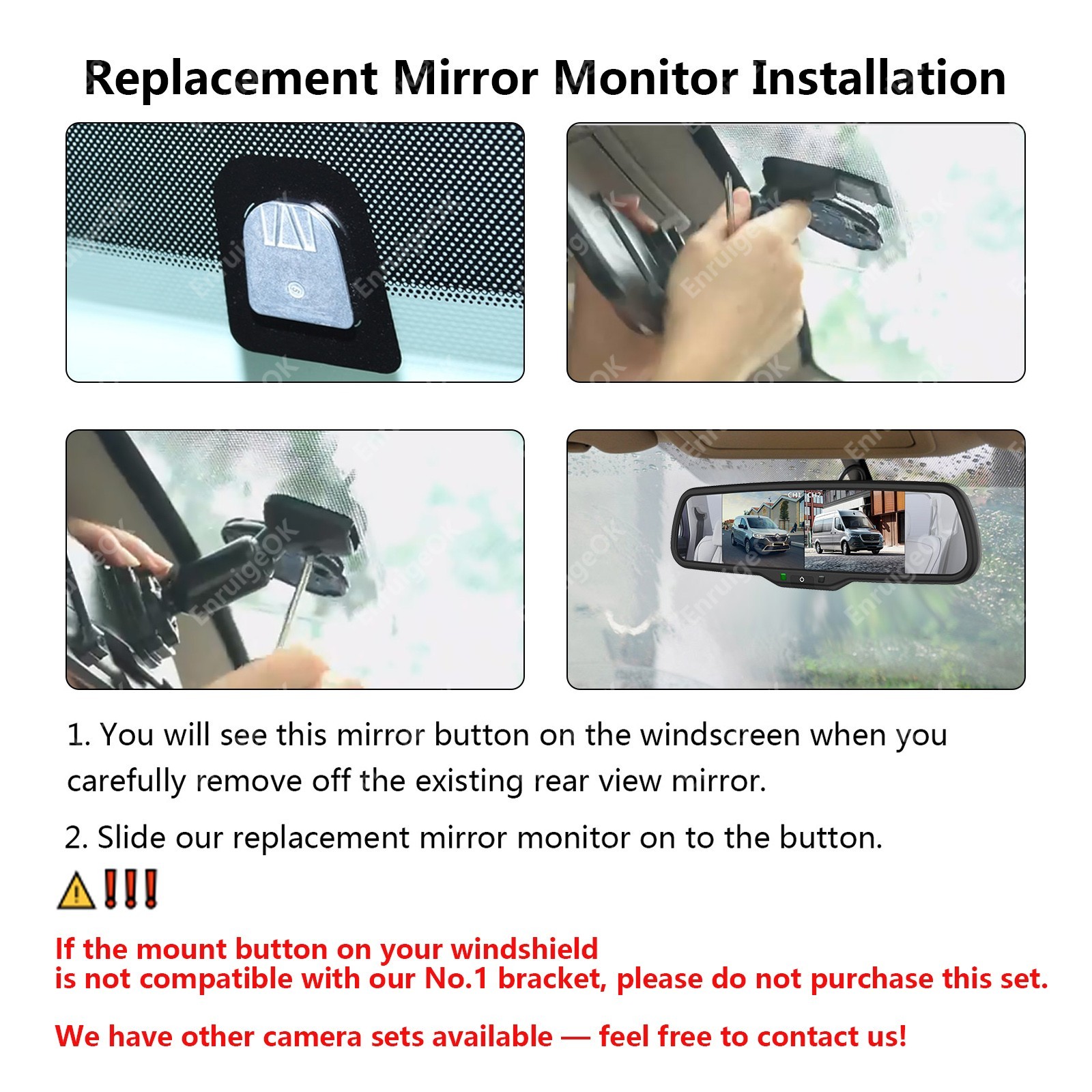

Monitor Bracket Note:
This kit includes the #1 bracket by default. If unsure about compatibility, please send a clear photo of your windshield button or original mirror bracket when ordering.

Package contents:
1 X Brake light camera
1 X 6.86'' Mirror monitor
1 X 2.5m monitor power cable
2 X 10m/33ft. video extension cable
2 X 1m DC power cable
1 X Female to female adapter
1 X #1 bracket(check your windshield button)
1 X Manual

Description:
* Complete Rearview System: Includes a 6.86-inch 2 split screen mirror monitor and dual-lens brake light camera for enhanced visibility and parking safety.
* 6.86" Dual-Screen Monitor: High-res (1280*480 IPS) display with dual inputs, 2 split screen, auto full-screen mode when reversing.

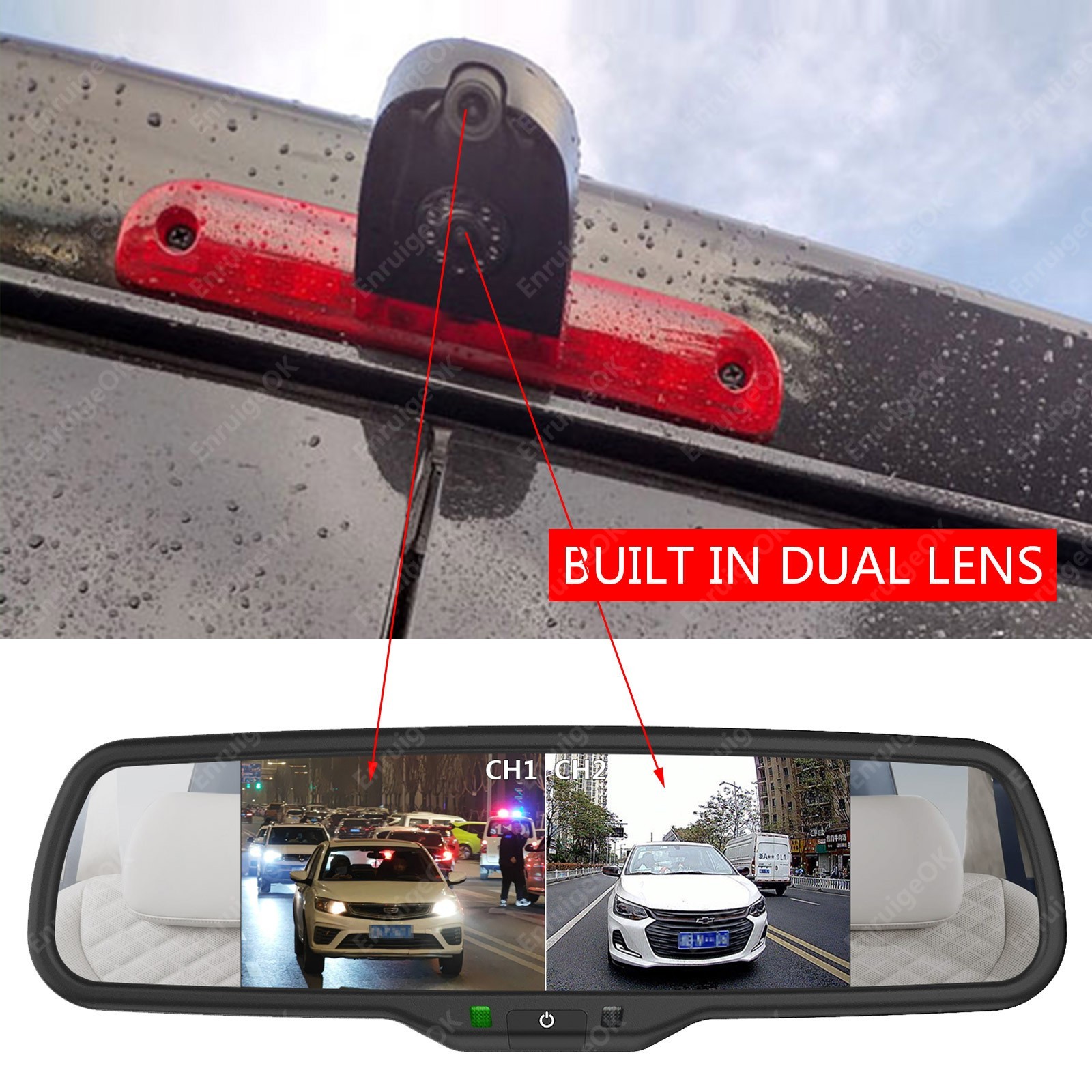

* TWIN LENS !!! Dual lens reversing camera: One(CH1) showing the road or area behind the vehicle, and the other(CH2) looking directly down to help the driver see the vehicle's rear end.
* Sensor and Night Vision: This brake light camera uses a Colour CMOS sensor with enhanced color imaging and features 8 infrared lights around the lens to ensure excellent night vision.
* Wide Voltage Range(DC 9V-35V): This brake light camera supports vehicle power systems with fluctuating voltages, ensuring reliable operation in various conditions.
* Waterproof Rating: Built with an IP69 rating, this camera is fully waterproof.

Camera Specifications:
Image sensor: 1/3" CMOS
Lens: 2.8mm & 3.6mm
Effective pixel: 1920(H)x720(V)
Resolution: AHD 720P
Night Vision distance: Approx.35ft
Waterproof rating: IP68
Viewing angle: 120°& 90°
Video system: PAL/NTSC
S/N Ratio: > 48dB
Current consumption: < 150mA
Minimum illumination: 0Lux(IR LED ON)
Power: DC 9V-35V
Operating temperature: -20℃ to +70℃

Monitor Specifications:
Screen: 6.86 inch
Resolution: 1280x(RGB)x480 IPS
TV System: PAL/NTSC auto
Screen ratio 16:9/4:3 adjustable

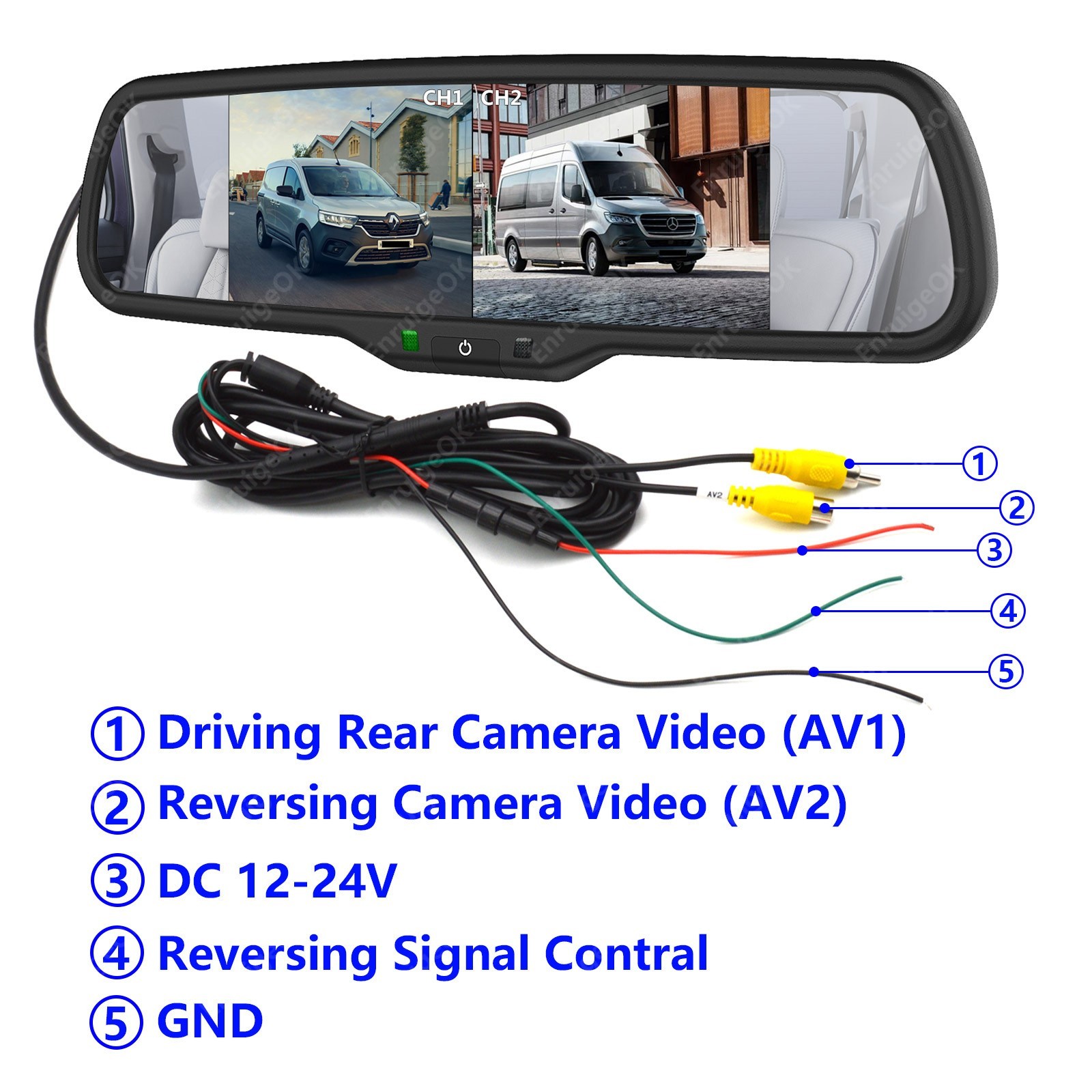

Video Input: Dual video input(AV1 for driving rear view, AV2 for reversing), automatic full-screen switch during reversing
Blue screen displayed when no signal is detected.
Power Supply: DC 12V-24V
Power consumption: 6W
Operation temperature: -20℃ ~ +60℃
Storage temperature: -20℃ ~ +60℃

Note:

1. We provide clear pictures and measurements where possible. Please check as much as possible to make sure the item is the one that you need.

2. Please allow a 0.5-inch difference due to manual measurement. (1inch=2.54cm)

3. The color of the actual items may be slightly different from the listing images due to different computer screens, thanks for your understanding.


Payment Policy:

1. Payment must be completed within 3 days, or else an unpaid case will be opened in order to cancel the transaction.
2. If you have any problems with payment, please contact us via eBay message. Your feedback & suggestions are deeply appreciated, thanks.


About Shipment:

1. We are not responsible for wrong or undeliverable addresses. Please provide us your full address with your Telephone Number and make sure your address is correct and deliverable.
2. Your order will be usually shipped out within 3 business days once the payment is made and cleared, excluding weekends and public holidays.
3. Delivery time depends on destination and other factors, thanks for understanding!
4. Buyers please note:
  a. Import duties, taxes and charges are not included in the item price or shipping charges. These charges are buyer's responsibility. We will try our best to reduce the risk of the custom duties.
  b. Please check with your country's customs office to determine what these additional costs will be prior to buying.


Return Policy:

1. We offer 30 days return policy. Please contact us within 30 days from the date you receive your order if you have any issues with the product.

2. If defective, malfunctioned, or parts-missing items are no longer available, a refund may be issued.

3. All returning postage costs will be the responsibility of the buyers under all circumstances.


Contact Us:

1.  We greatly appreciate your POSITIVE feedback.

2. If you encounter any problems with anything, please feel free to contact us and we will do our best to assist you solve the issue. If you are not satisfied in any way, please feel free to let us know and give us a second chance to correct it before you decide to leave any neutral or negative feedback.


  Our Working Time is Beijing: 9: 00 AM -- 6: 00 PM (Monday to Saturday)

      Please allow us at least 24 hours to reply to you when in the office, thanks!

Screen Display IPS display
Detection Angle 120°&90°
Waterproof IP69
Compatible Vehicle Make Fiat Ducato, Peugeot Boxer, Citroen Relay(2006-Present)
Items Included Camera, Monitor, Mounting Brackets
Power Supply DC 9V-35V
Placement On Vehicle Rear
Colour Red
Manufacturer Warranty 1 Year
Features Distance Lines, Night Vision, Waterproof, Dual lens
Monitor Resolution 1280*480(RGB) IPS
Camera Resolution AHD 720P
Guiding Line Yes
Screen Size 6.86-inch, support 2-Split screen
Seller Warranty 1 Year
Material ABS+PC
Colour Camera Yes
Power Cable Length 10m/33ft.
Brand EnruigeOK
Type Rear View Monitor w/Cam Kit
Camera Sensor 1/3" COMS Sensor
System Standard NTSC/PAL
Connectivity Wired
Universal Fitment No
Country Of Origin China
